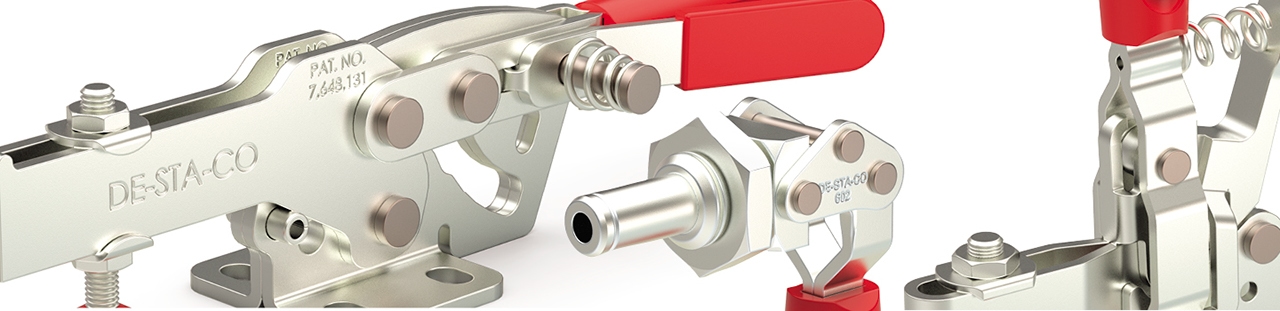

LOW-PROFILE, MANUAL HORIZONTAL HOLD DOWN CLAMPS – 227 - DESTACO

Need Help?

Find a Distributor

Stabilus Group

Virtual Tech Support

Product	Short Description	Product Type	Standard Material	Base Mounting Style	Handle Color	Maximum Holding Capacity (lbf)	Maximum Holding Capacity (N)	Weight (lbs)	Clamp Bar Opening (+10°) (degrees)	Clamp Arm Style	Clamp Arm Length (in)	Accomodates Workpiece Variation	Handle	Service Environment	Handle Opening (+10°)	Height Under Clamp Arm (in)
227-U	Flanged Base, U-Bar	Horizontal Hold-Down Toggle Clamp	Steel	Flange	Red	500	2220	0.68	91	U-Bar	2.65	No	Horizontal	Normal	56	1.25
227-U-B	Straight Base, U-bar	Horizontal Hold Down Clamp	Steel	Flange	Blue	500	2220	0.68	91	U-Bar	2.65	No	Horizontal	Normal	56	1.25
227-U-G	a 227-U with Green Handle \| 227-U-G	Horizontal Hold Down Clamp	Steel	Flange	Green	500	2220	0.68	91	U-Bar	2.65	No	Horizontal	Normal	56	1.25
227-U-K	a 227-U with Black Handle \| 227-U-K	Horizontal Hold Down Clamp	Steel	Flange	Black	500	2220	0.68	91	U-Bar	2.65	No	Horizontal	Normal	56	1.25
227-U-L	Flanged Base, Open Bar	Horizontal Hold Down Clamp	Steel	Flange	Red	500	2220	0.68	91	Open U-Bar	2.39	No	Horizontal	Normal	56	1.25
227-U-Y	a 227-U-Y - 227-U with Yellow Handle	Horizontal Hold Down Clamp	Steel	Flange	Yellow	500	2220	0.68	91	U-Bar	2.65	No	Horizontal	Normal	56	1.25
227-UB	Straight Base, U-bar	Horizontal Hold Down Clamp	Steel	Straight	Red	500	2220	0.68	91	U-Bar	2.65	No	Horizontal	Normal	56	1.45
227-UB-L	Straight Base, Open Bar	Horizontal Hold Down Clamp	Steel	Straight	Red	500	2220	0.68	91	Open U-Bar	2.39	No	Horizontal	Normal	56	1.45
227-USS	a 227-USS - Stainless Steel 227-U	Horizontal Hold Down Clamp	Stainless Steel	Flange	Red	600	2670	0.68	91	U-Bar	2.66	No	Horizontal	Normal	56	1.28
